TYPE-C FEMALE 90 Degree 14 pins PD Roll Packing Orange

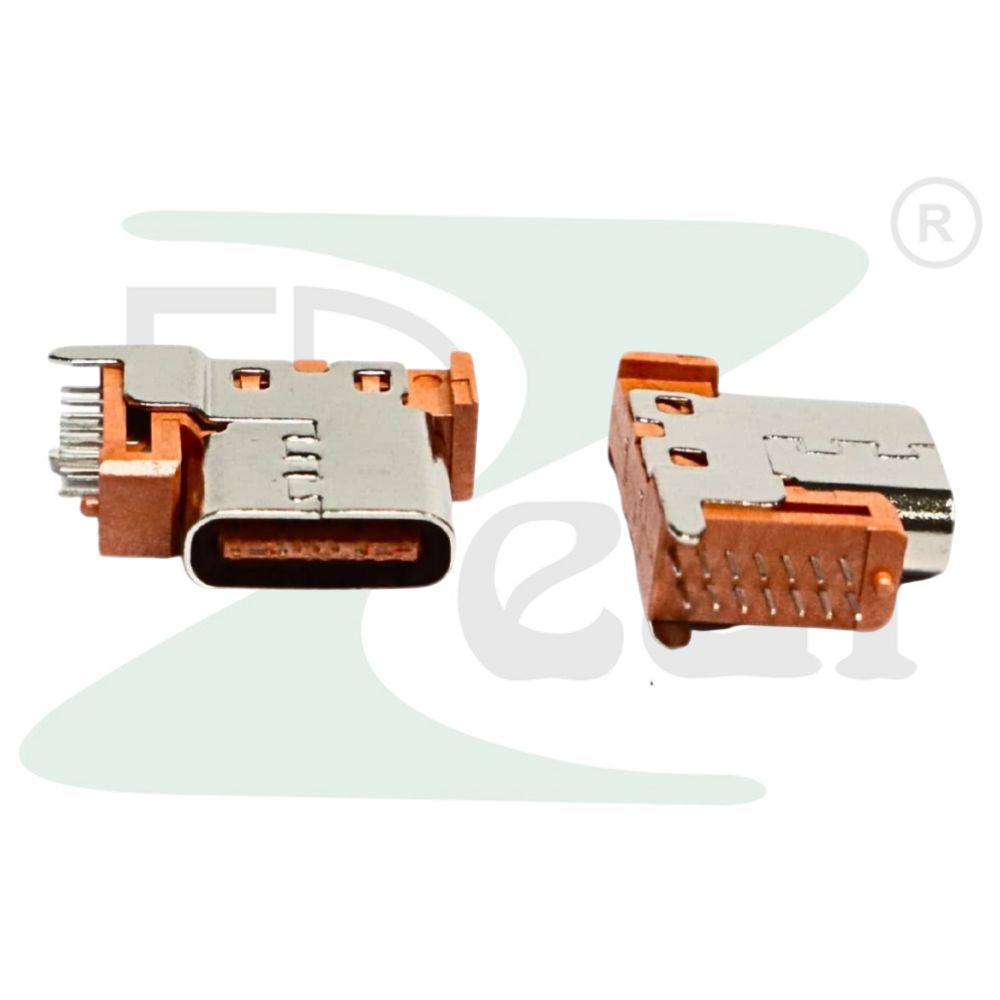

USB Type-C Female 90 Degree 14 Pin PD Connector — Orange, Roll Packing

The high-reliability, right-angle USB-C connector built for modern PCB designs.

This USB Type-C Female 90 Degree 14 Pin Connector is engineered for designers and manufacturers who demand precision, durability, and Power Delivery capability in a compact, right-angle form factor. Supplied in roll packing (tape & reel) for effortless pick-and-place assembly, this connector is the go-to choice for electronics engineers across India building charging circuits, fast-charge adapters, IoT devices, and portable electronics.

Key Specifications:

• Connector Type: USB Type-C Female
• Pin Count: 14 Pins
• Mounting Angle: 90 Degree (Right Angle / Horizontal)
• Packing: Roll Packing (Tape & Reel) — suitable for automated assembly
• Color: Orange (housing)
• PCB Mount Type: SMD / DIP compatible
• Standard: USB 2.0 / PD (Power Delivery) supported
• Rated Current: Up to 5A
• Mating Life: 10,000+ cycles
• Contact Plating: Gold-plated for reliable, low-resistance connection
• Operating Temperature: -40°C to +85°C

Why This Connector?

The 90-degree (right-angle) design keeps your PCB profile low and is ideal for edge-mounted designs where a vertical connector would add unnecessary height. The 14-pin configuration supports USB 2.0 data lines as well as Power Delivery (PD) functionality, making this suitable for fast-charging circuits, USB hubs, and consumer electronics.

Roll packing ensures each unit arrives in perfect condition with zero handling damage — ready directly for automated SMD placement or manual soldering.

Ideal Applications:

• USB fast-charging adapters and GaN chargers
• Power bank and portable battery circuits
• IoT edge devices and embedded systems
• Laptop docking stations and USB hubs
• Consumer electronics PCB assemblies
• DIY electronics projects and prototyping
