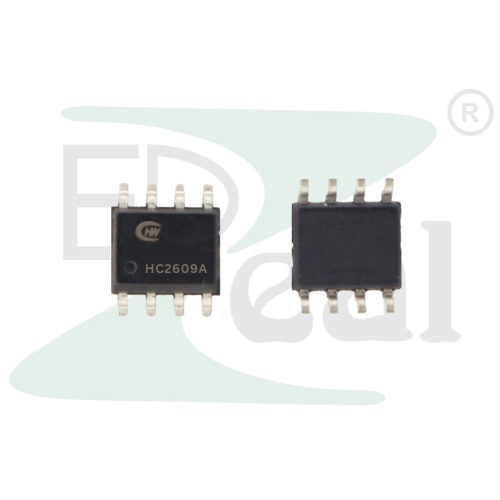

HC2609A POWER IC

Add to wishlist

Model Number: HC2609A

Brand: HCW

Package Type: SMD SOP-8

Power Output: 15W (based on input AC).

Function: AC to DC Converter

Application: Mobile Chargers, Power Adapters, LED Drivers

Input Voltage: 100V – 264V AC

Output Voltage: Adjustable as per circuit design.

Output Current: Up to 3A (based on design).

Protections: Built-in Overload, Short Circuit, and Thermal Protection

Operating Temperature Range:  -20°C to 140°C

(Including Tax)

HC2609A is an offline switching power supply chip with a peak output power of 15W. HC2609A integrates a PWM controller, 700V power tube and primary peak current detection circuit. It adopts self-power supply technology, which can omit the auxiliary power supply winding, simplify the peripheral circuit and PCB layout, and is suitable for low-power flyback switching power supply. HC2609A has a temperature control mode to avoid charging interruption during charging.

Features:-

  • Built-in 700V high-voltage power tube
  • Output constant power control
  • Built-in 16mS soft-start circuit
  • Self-powered technology, no need for external auxiliary winding power
    supply
  • Built-in frequency modulation circuit simplifies peripheral EMI
    design costs
  • Complete overvoltage, overtemperature, overcurrent, overload, and
    output open circuit protection
  • Built-in temperature control mode to avoid charging interruption
    during charging
  •  Using SOP8 package
