RS1M SMD Diode SMAFn 46 MIL

RS1M SMD Fast Recovery Diode — SMA DO-214AC | 1A 1000V

The RS1M is a high-performance Surface Mount Fast Recovery Rectifier Diode housed in the compact SMA (DO-214AC) package. Rated at 1A forward current and 1000V peak reverse voltage, it is engineered for demanding high-frequency rectification tasks in modern electronics.

With a reverse recovery time of 500ns and a glass-passivated chip junction, the RS1M dramatically reduces switching losses in high-speed circuits — making it the go-to component for SMPS (switched-mode power supplies), flyback converters, freewheeling diode circuits, and pulse rectification applications.

Unlike general-purpose diodes like the 1N4007 (max 1KHz), the RS1M operates up to 1MHz, giving design engineers a critical performance edge in compact, miniaturized PCB designs where space and efficiency both matter.

Key Specifications:

Why Choose RS1M?

• Glass-passivated junction for long-term reliability
• Built-in strain relief for automated PCB assembly (pick-and-place ready)
• Low profile SMA package — perfect for space-constrained designs
• Surge overload rated to 30A peak
• UL certified, RoHS & Pb-Free compliant
• Direct SMD equivalent of the leaded FR107 diodeAlt Text: RS1M SMD Fast Recovery Diode SMA DO-214AC 1A 1000V

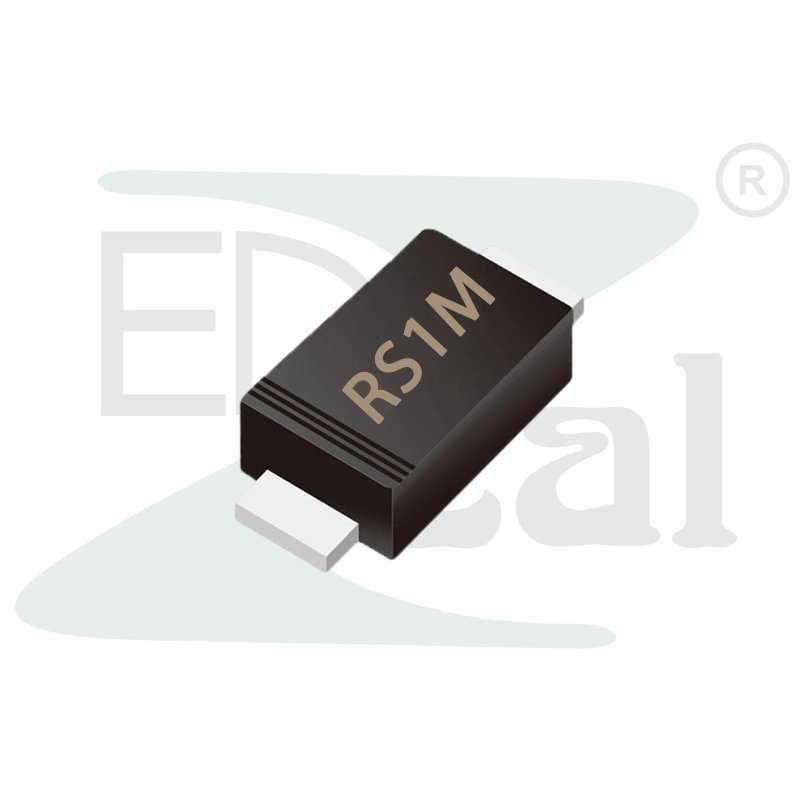

• Caption: RS1M — Surface Mount Fast Recovery Rectifier Diode in SMA (DO-214AC) Package
• Description: Close-up front view of the RS1M SMD diode showing the SMA package profile, polarity marking, and compact footprint suited for automated PCB assembly.
