Rocker Switch 608 6 Pin Black On-Off-On 3 Way Copper KCD 4

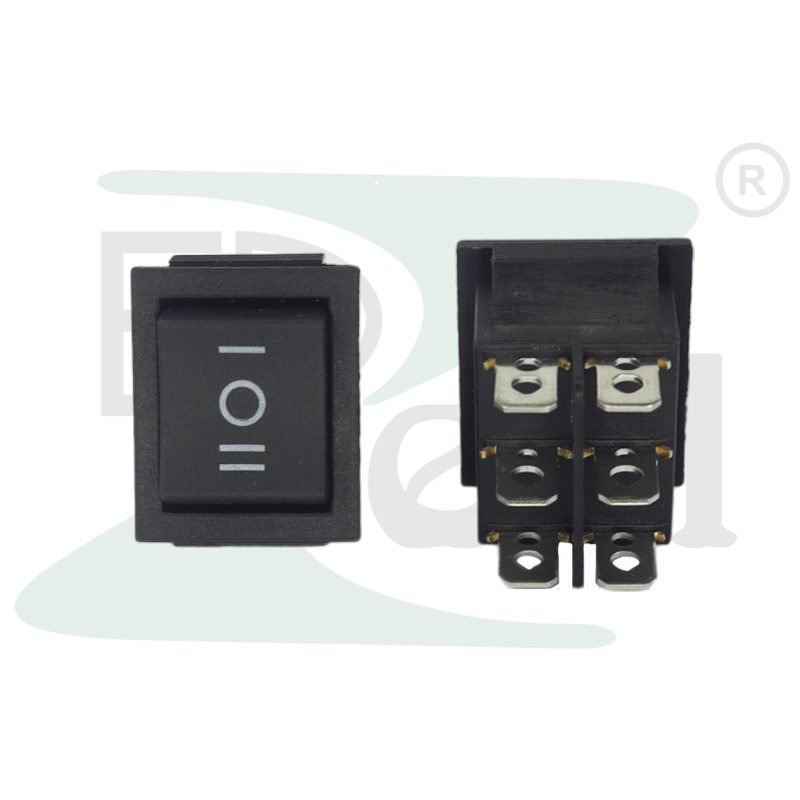

KCD4 Rocker Switch 608 – 6 Pin Black On-Off-On 3 Way with Copper Terminals

Take full control of dual circuits with a single snap.

The Rocker Switch 608 KCD4 is a heavy-duty, 3-position DPDT (Double Pole Double Throw) rocker switch built for engineers, hobbyists, and OEM manufacturers who need reliable switching performance in demanding environments. With 6 copper-contact terminals, an On-Off-On three-way action, and a solid black body, this switch is engineered for precision circuit control in motors, appliances, control panels, automotive systems, and DIY electronics.

Why Choose This Switch?

Unlike standard rocker switches with basic brass or tin-plated contacts, this KCD4 model features pure copper terminals that deliver superior electrical conductivity, reduced contact resistance, and longer operational life — even under high-current conditions.

Key Features

• Model: KCD4 608
• Configuration: On – Off – On (3 Position, 3 Way)
• Poles: DPDT – Double Pole Double Throw
• Terminals: 6 Pin with Copper Contacts
• Color: Black Body
• Rated Current & Voltage: 16A at 250V AC / 20A at 125V AC
• Contact Resistance: ≤ 50mΩ
• Insulation Resistance: ≥ 100MΩ
• Dielectric Strength: 1500V AC / 5 seconds
• Mechanical Life: ≥ 10,000 operating cycles
• Mounting: Snap-in panel mount
• Body Material: High-grade flame-retardant plastic
• Overall Size: ~31 × 25 × 34mm
• Mounting Hole Size: ~29 × 21.4mm

How It Works — 3 Position Explained

The On-Off-On function gives you three distinct switching states:

• Position 1 (On): Circuit A is active
• Position 2 (Off): Both circuits disconnected — complete power cutoff
• Position 3 (On): Circuit B is active

This makes it ideal for motor direction reversal, dual-source selection, and multi-mode control panels.

Applications

This KCD4 6 Pin rocker switch is widely used in:

• DC/AC Motor Forward-Reverse Control
• Home Appliances — water dispensers, geysers, mixer machines
• Industrial Control Panels
• Automotive & Motorcycle Switchgear
• Marine & Boat Equipment
• DIY Electronics & Robotics Projects
• Power Distribution Boards
• Computer Peripherals & Audio Equipment

Wiring Guide (Quick Reference)

The 6 pins are arranged in 2 rows of 3:

• Row 1 (Pins 1–3): Pole 1 — Common, Output A, Output B
• Row 2 (Pins 4–6): Pole 2 — Common, Output A, Output B

Connect your power input to the Common pins, and your load/output to the respective On positions. Suitable for both AC and DC wiring setups.

Quality & Safety

• Flame-retardant plastic housing
• Snap-in design for secure panel fitment
• Compliant with standard safety specs for 250V AC operation
• Copper terminals ensure minimal heat buildup under load

Package Contents

• 1 × KCD4 608 Rocker Switch (6 Pin | Black | On-Off-On | Copper Terminals)
